Wiring the NavX3

Power

The NavX3 supports two power options.

1. 8 - 30VDC via the WAGO Power Input Terminals
2. 5VDC via USB

Signal

The NavX3 has two methods of communication.

1. CAN-FD (CAN2.0B fallback)
2. USB Serial

Wiring Diagrams

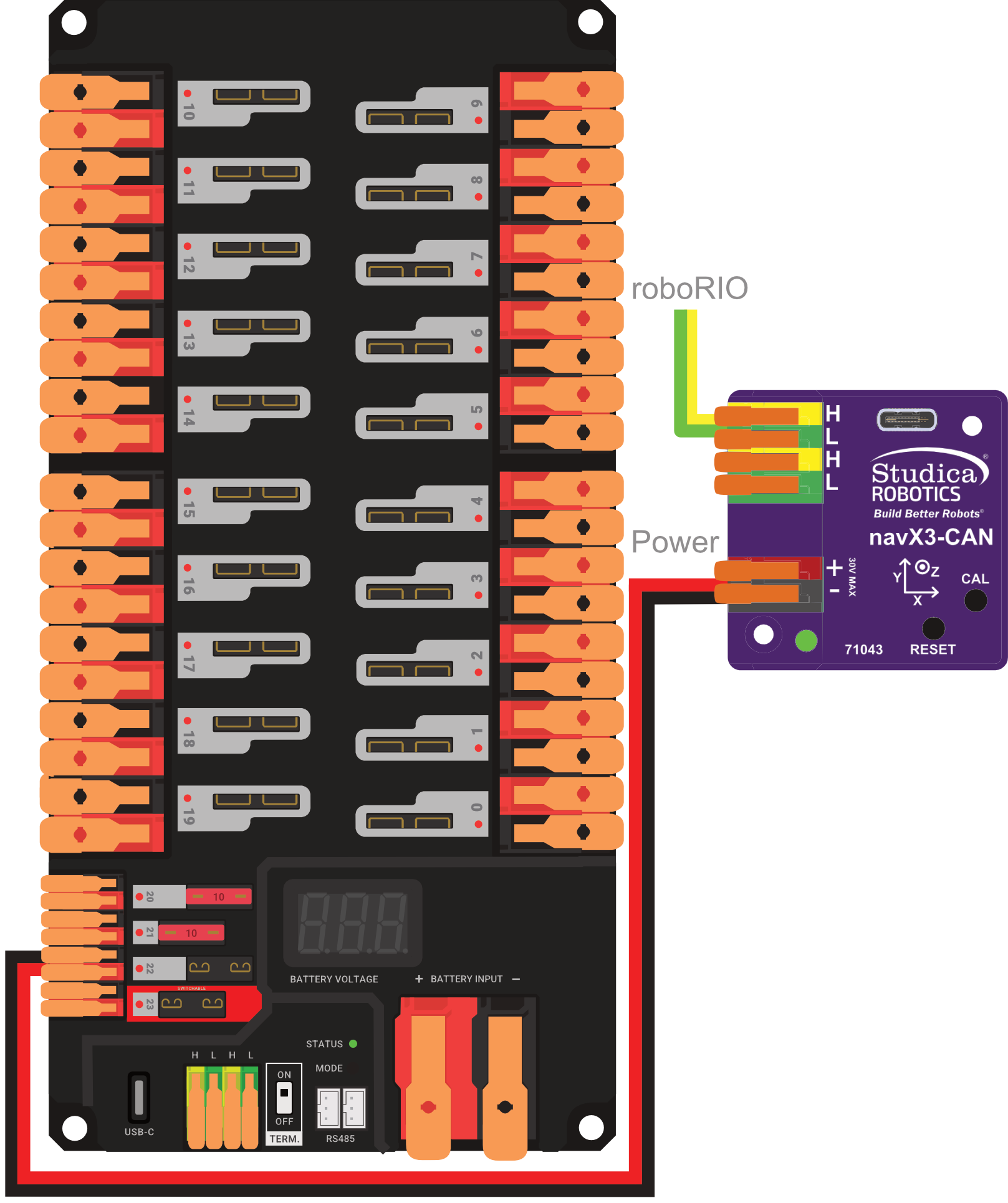

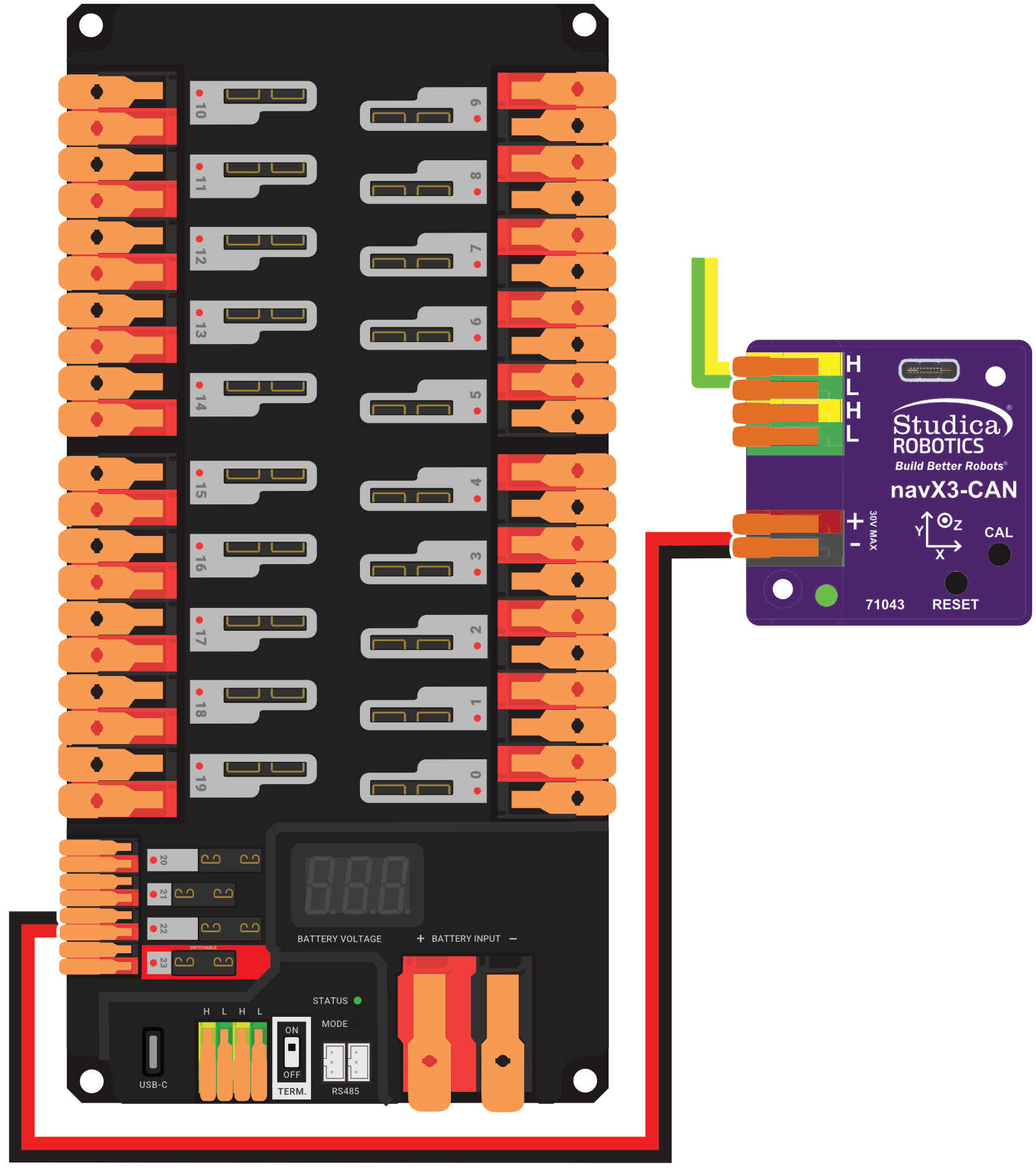

PDH

PDH Image from Team 3161 and Stefen Acepcion.

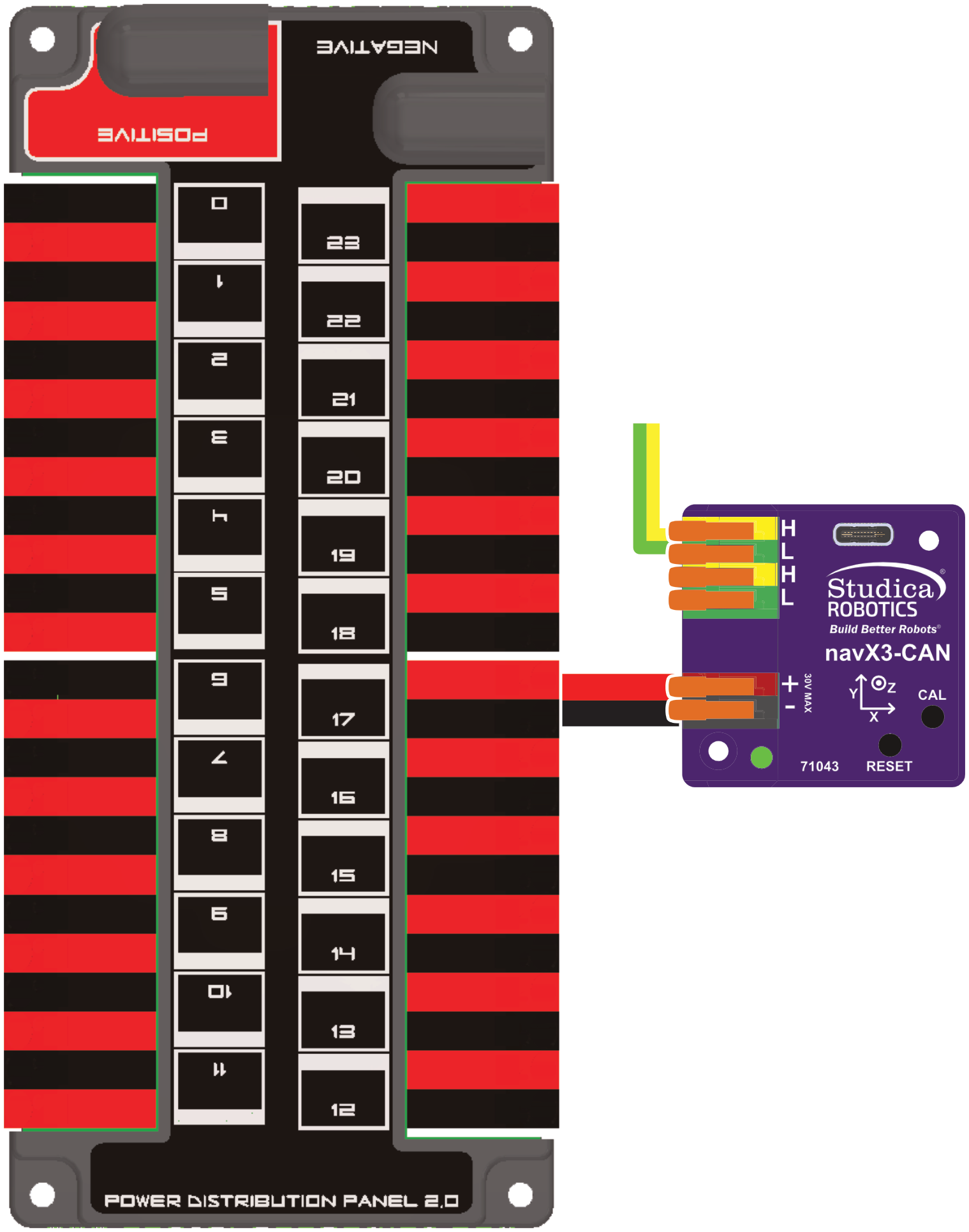

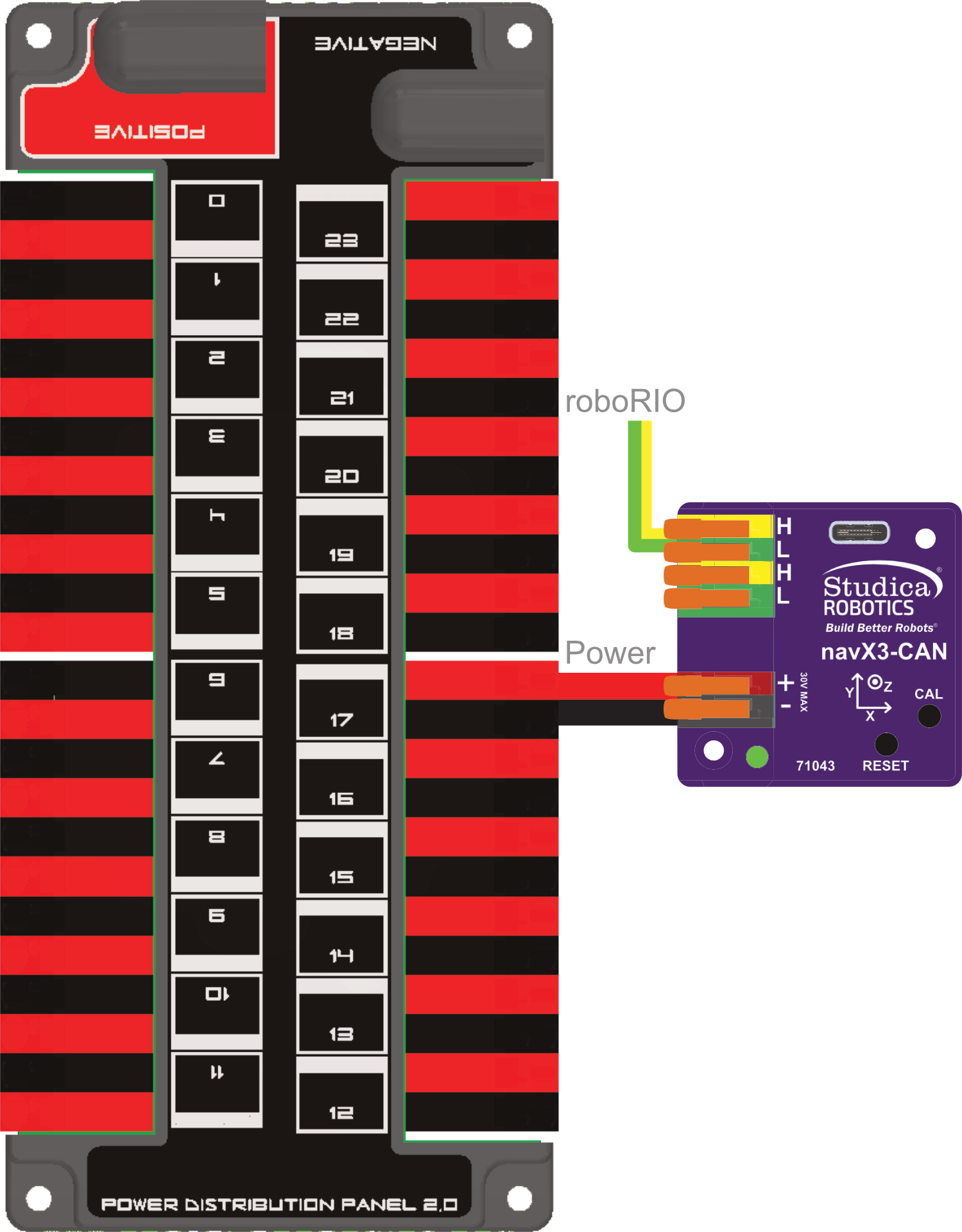

PDP

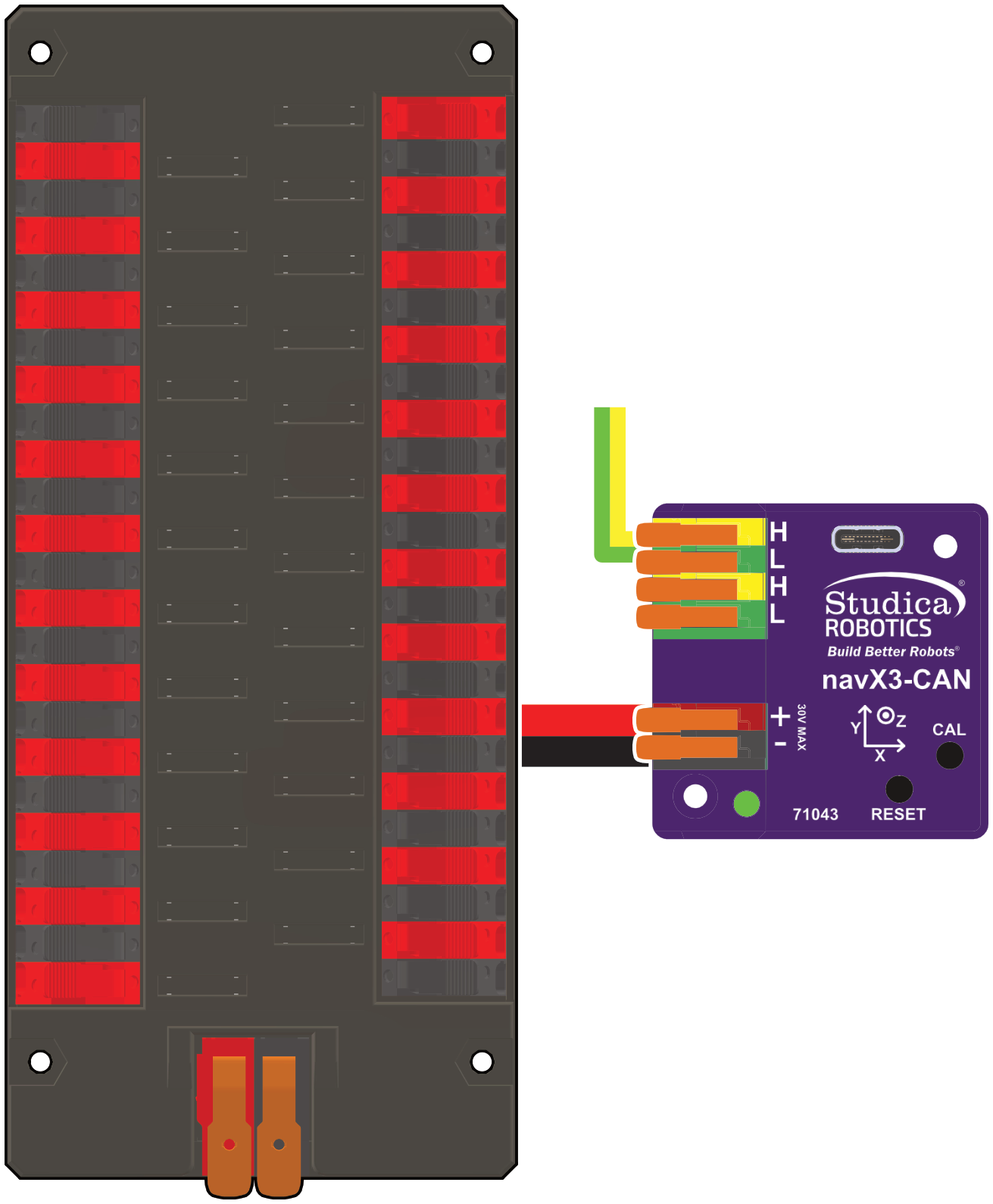

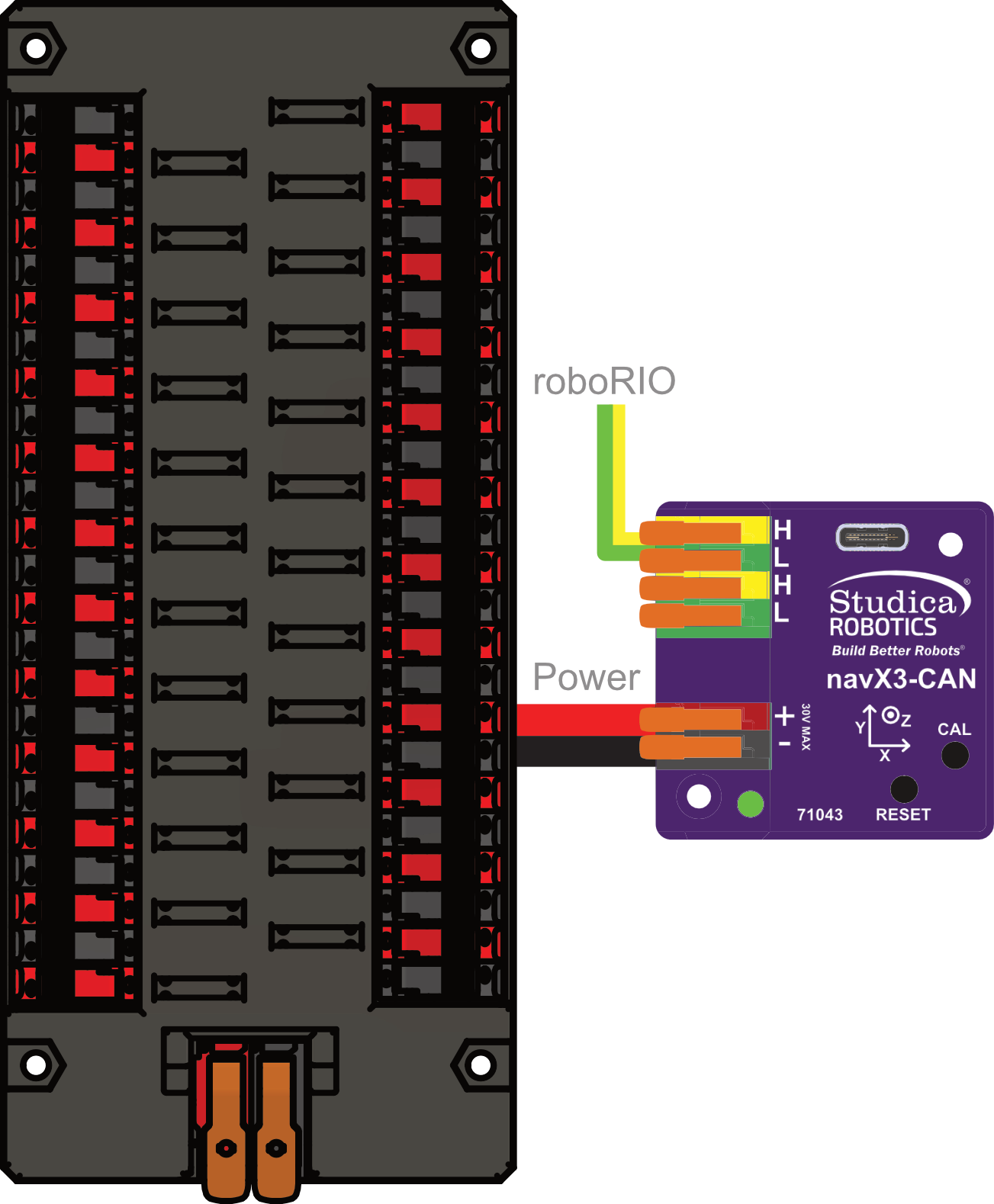

AMPD

USB

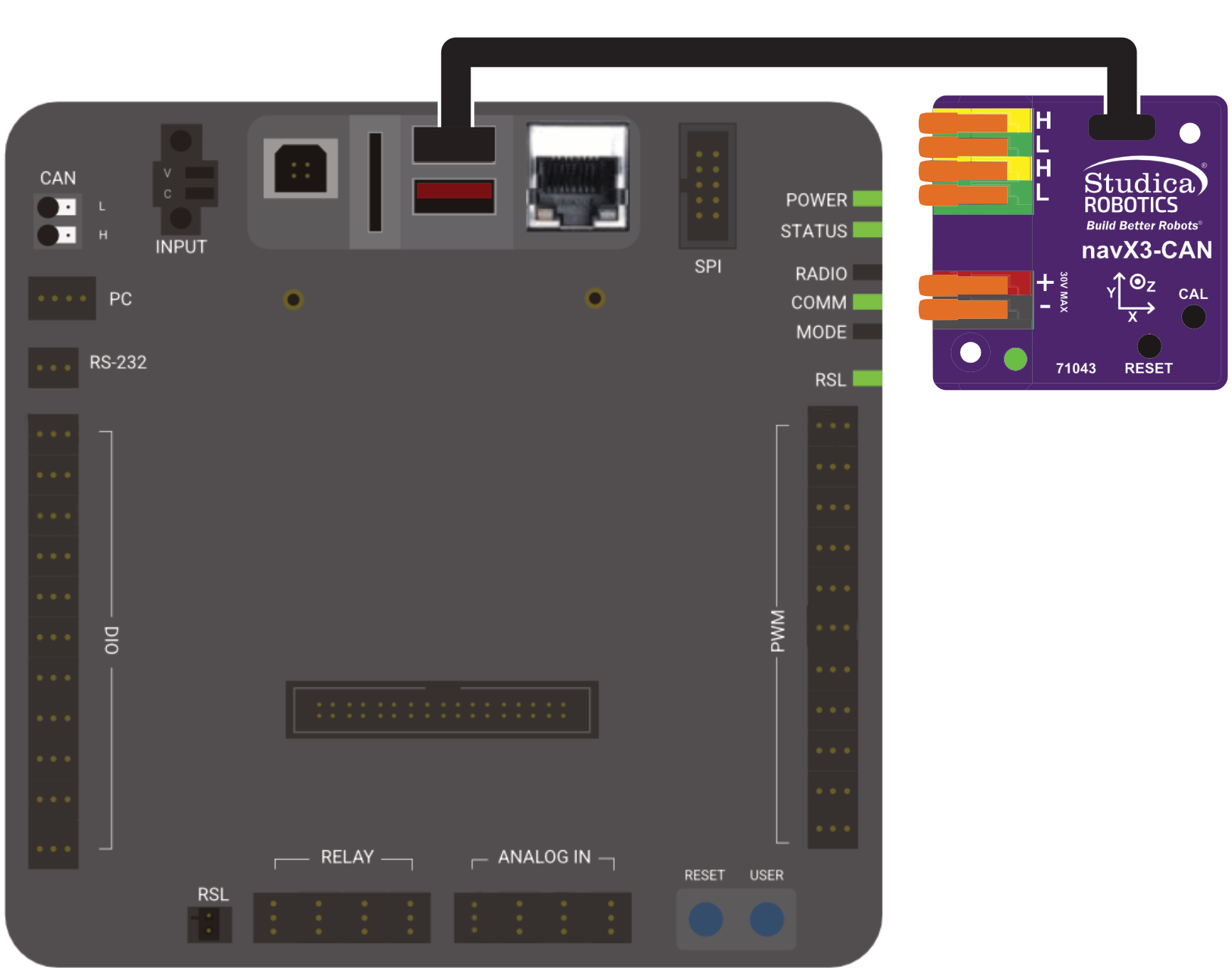

roboRIO Image from Team 3161 and Stefen Acepcion.
